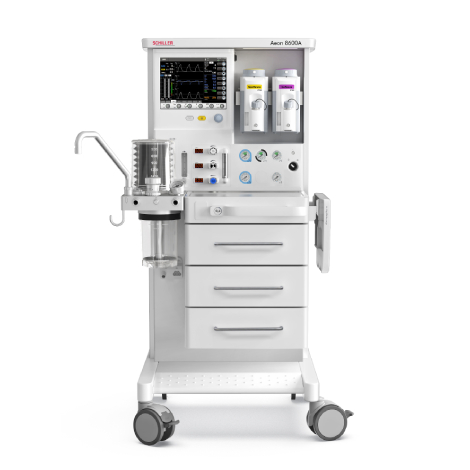

Aeon 8600A

1. Core Features & Gas Delivery System
1.1 Flowmeter System: Backlit mechanical flowmeters for multiple gases (Air, O₂, N₂O), enabling precise fresh-gas flow control.
1.2 Gas Supply Configuration: Supports hospital gases (Air, O₂, N₂O) with supply pressure range 280–600 kPa.
1.3 Gas Safety Features: N₂O cut-off, oxygen-supply failure alarm, and oxygen flush (25–75 L/min) for emergency oxygenation.

2. User Interface & Monitoring
2.1 Display: 10.4-inch TFT color touchscreen for intuitive operation.
2.2 Monitoring: Pressure, volume, respiratory rate (MV, Vt, Freq), optional gas concentrations (O₂, CO₂, anesthetic agent), full waveform and loop display (P-T, F-T, P-V, F-V, optional CO₂-T).
2.3 Alarm System: High/low airway pressure, minute volume, FiO₂, power failure, oxygen supply failure, apnea alarm, and more.

3. Ventilation & Respiratory Support Capabilities
3.1 Ventilation Modes: IPPV, PCV, SIMV + PS, PS, Manual.
3.2 Tidal Volume Range: 20 – 1500 mL (pediatric to adult).
3.3 Ventilation Frequency: 4 – 100 breaths per minute.
3.4 I:E Ratio: 4:1 – 1:8.
3.5 Pressure Range: Inspiratory 5–70 cmH₂O, support pressure 3–50 cmH₂O, PEEP 0–30 cmH₂O.
3.6 Trigger/Sensitivity: Gas-flow trigger 1–15 L/min.
3.7 Compensation Features: Compliance, leakage/fresh-gas flow, and altitude compensation.

4. Breathing System & CO₂ Management
4.1 Breathing Circuit: Autoclavable design for robustness and sterilization.
4.2 CO₂ Absorber: Supports loose-fill (3 L) or prepack canisters; optional single 1.5 L canister.
4.3 Operational Modes: Closed, semi-closed, semi-open circuits supported.
4.4 CO₂ Bypass: Optional function available.

5. Safety & Reliability Features
5.1 O₂ Safety Guarantee: Ensures safe oxygen concentration via N₂O cut-off and O₂ supply safety.
5.2 Alarms & Monitoring: Multi-level alarms for airway pressure, minute volume, FiO₂, power/oxygen failure, apnea.
5.3 Flexible Control: Touch-key plus navigator wheel for precise ventilation adjustments.

6. Optional & Expandable Features
6.1 Gas Monitoring (AGM): Optional CO₂ and anesthetic-gas monitoring (mainstream or sidestream), includes gas consumption calculations.
6.2 Anesthetic Gas Scavenging (AGSS): Passive standard; Active optional.
6.3 Vaporizers: Supports two Selectatec-mounted units for Halothane, Enflurane, Isoflurane, Sevoflurane.
6.4 Auxiliary Outlets: Auxiliary O₂ outlet and optional ACGO for additional modules.

7. Physical, Electrical & Operating Specifications
Parameter Value / Range
Dimensions (W × H × D) 704 × 1403 × 750 mm
Weight (with trolley + 2 vaporizers, no cylinder) ~ 115 kg
Power Supply 100–240 V AC, 50/60 Hz
Battery Backup 24 V DC, ~120 min (2 hours)
Gas Supply Pressure 280–600 kPa (Air / O₂ / N₂O)
O₂ Flush Flow Rate 25–75 L/min
Ventilator Tidal Volume 20–1500 mL
Ventilation Rate 4–100 breaths per minute
I:E Ratio 4:1 – 1:8
