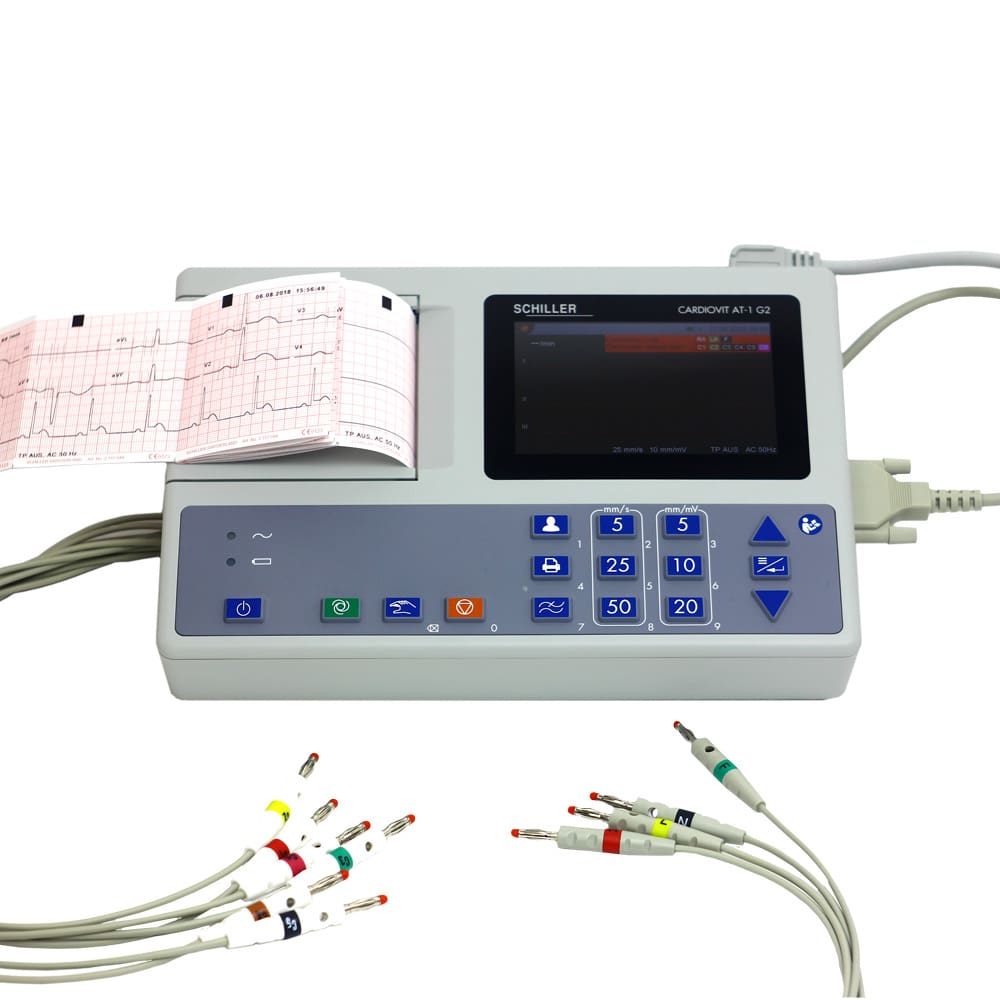

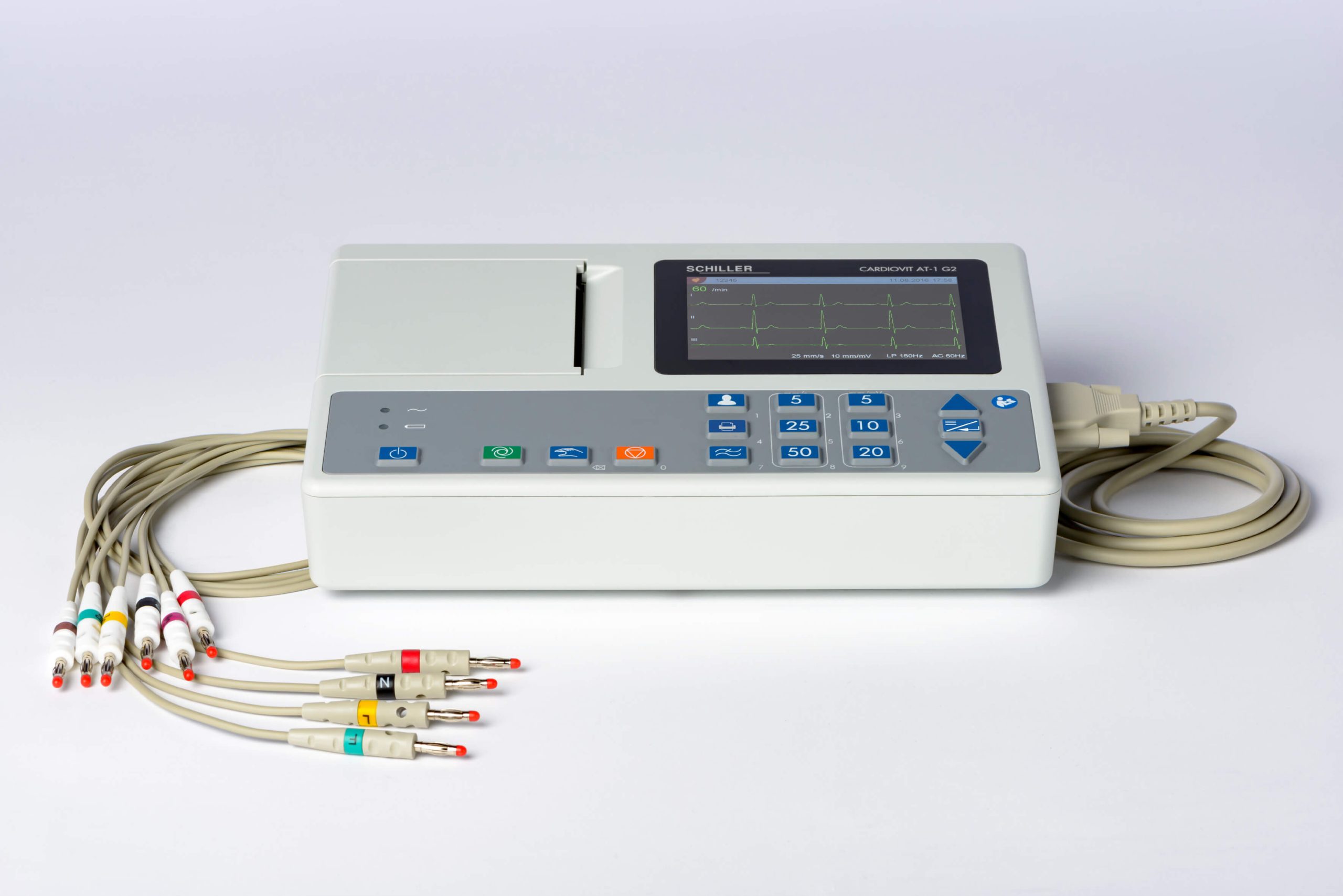

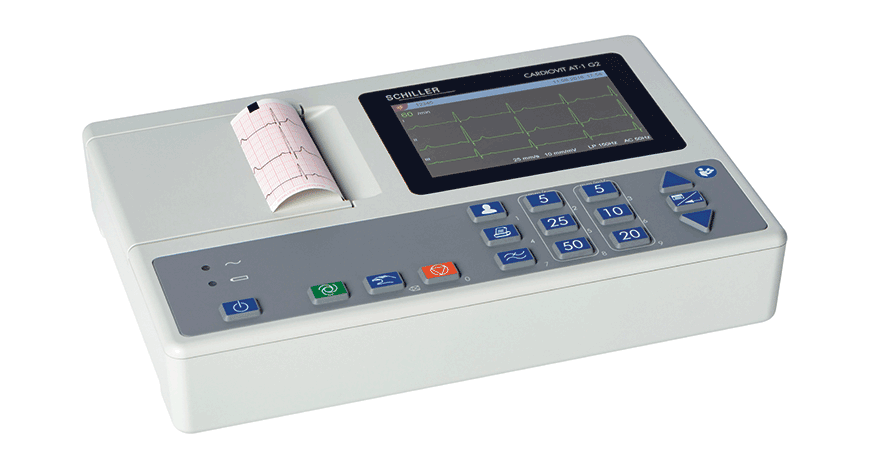

CARDIOVIT AT-1 G2

1. Overview:-
-Compact, ergonomic 12-lead resting ECG for adult and pediatric use.
-User-friendly 3-step workflow: patient data entry → ECG acquisition → review.
-High signal quality with very high sampling frequency for detailed ECG diagnostics.

2. Design & User Interface:-
-Display: 5-inch color LCD, resolution 800 × 480.
-Keyboard: Sealed, medical-grade silicone keyboard, easy to clean.
-Workflow: Intuitive interface; preview signal quality, record, review, then print or export.

3. ECG Recording & Signal Quality:-
-Leads: Standard 12-lead ECG.
-Channels: 3-channel print format, records all 12 leads.
-Signal Preview: Real-time signal check, including lead-reversal detection.
-Pacemaker Detection: Automatically detects pacemaker signals.
-Sampling Rate: 32,000 Hz for high-fidelity ECG recording.

4. Printer & Output:-
-Built-in high-resolution thermal printer (Z-folded 70 × 80 mm or roll paper).
-Selectable lead print formats.
-ECGs exportable as PDF via USB.

5. Memory & Storage:-
-Stores up to 100 ECGs in PDF format.

6. Power / Battery:-

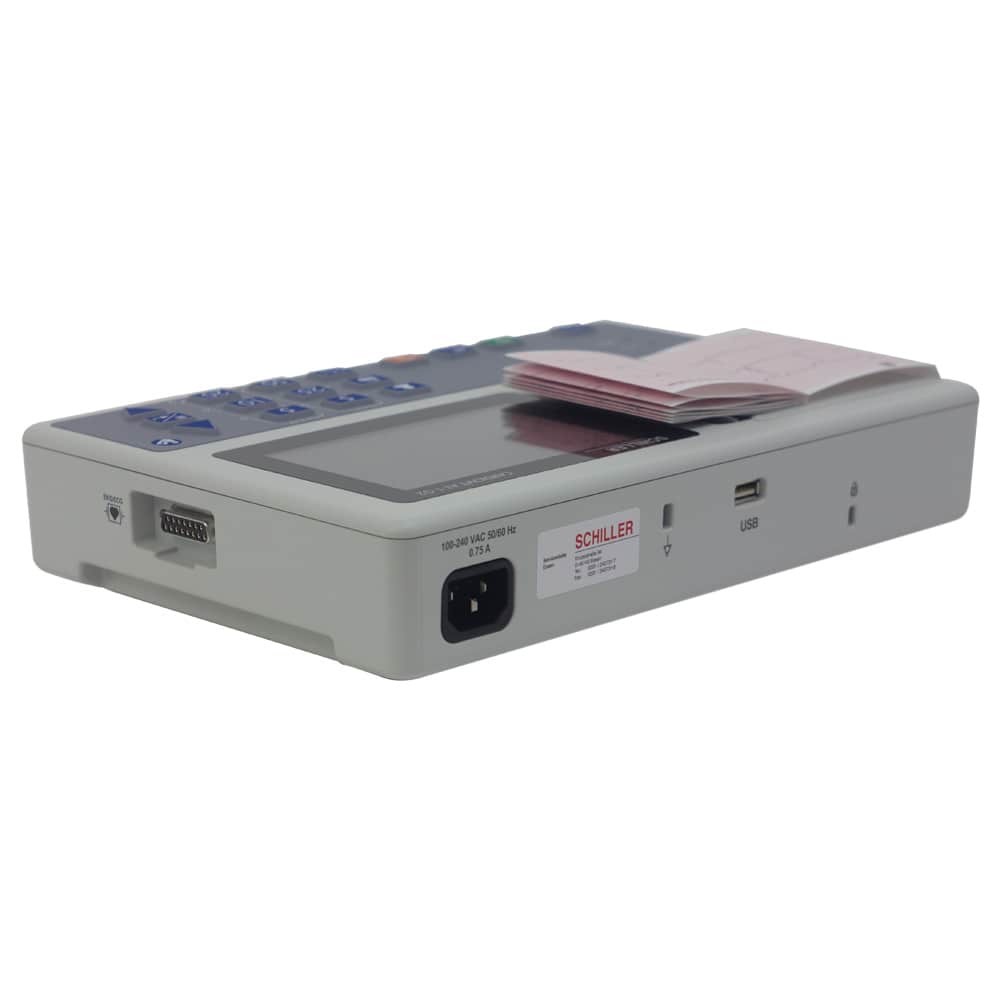

-Power Supply: 100–240 VAC input.
-Battery: Built-in Pb-gel rechargeable battery, up to 4 hours continuous use (without printing).
-Power Consumption: Up to ~30 W.

7. Diagnostic Algorithms / Interpretation:-
-Comes with ETM automatic ECG interpretation.
-Optional CCAA (Culprit Coronary Artery Algorithm) for identifying coronary artery obstruction.

8. Safety & Certifications:-
-Fully floating, defibrillation-protected ECG input (with correct patient cable).
-Complies with IEC/EN 60601‑2‑25 (ECG) and IEC/EN 60601‑1‑2 (EMC) standards.

9. Environmental & Physical Specs:-
-Dimensions: ~285 × 189 × 61 mm
-Weight: ~1.94 kg (including thermal paper)
-Operating Temperature: 10 °C to 40 °C
-Storage / Transport Temperature: –10 °C to +50 °C

10. Workflow / Usability:-
-3-step ECG process: enter patient data → check signal quality & perform ECG → review and save/print/export.
-Designed for simplicity, reliability, and busy clinical settings.

11. Target Use / Applications:-
-Suitable for general practices, clinics, hospitals, and pediatric cardiology.
-Works for both desktop and mobile use due to compact size and battery operation.
