Defigard 400
Schiller DEFIGARD 400 is a compact, portable biphasic defibrillator with monitor for emergency cardiac care, featuring a colour TFT display, intuitive controls, and support for adult and paediatric patients, with optional AED, pacing, advanced monitoring, CPR feedback, and data storage.
Key Features
- Premium Quality Equipment
- Free Installation Support
- Manufacturer Warranty
- 24/7 Technical Support
Product Description
Features
1.Large 10” colour TFT display with LED backlight
2.Direct function keys and rotary knob to select modes
3.Visual Instructions and guidance on screen
4.Adult and paediatric application
5.Compact, light weight and portable
6.Energy selection & patient contact indicator on Paddles
7.Automatic testing at predefined intervals
OPTIONAL
1.AED
2.External pacemaker
3.Internal defibrillation through spoon paddles
4.12-lead ECG, SpO2, NIBP, EtCO2
5.Integrated thermal printer
6.USB interface for data storage
7.CPR feedback
8.Arrhythmia detection
9.Respiration
10.Dual IBP
11.Dual Temperature
Technical Specifications
| Application: | Adult and paediatric use |
| Battery Charging Time: | Approximately 10–12 hours |
| Battery Runtime: | Approximately 2–3 hours of monitoring or about 100 shocks at 200 J |
| Battery Type: | Rechargeable 12 V lead-acid battery |
| Defibrillation Waveform: | Truncated biphasic, impedance-compensated |
| Display Screen: | 8.4-inch colour TFT LCD with LED backlight |
| Maximum Defibrillation Energy: | Up to 200 J (standard) |
| Operating Modes: | Manual, synchronized cardioversion, AED (optional) |
| Optional Higher Energy: | Up to 360 J (optional) |
| Power Supply: | 100–240 V AC, 50/60 Hz |
| Shock Delivery: | Via external paddles (adult and paediatric) |
| User Controls: | Rotary knob with direct function keys |
| Weight: | Approximately 6.6 – 8 kg (varies by configuration) |
Download Documents
No documents available for download.
Related Products

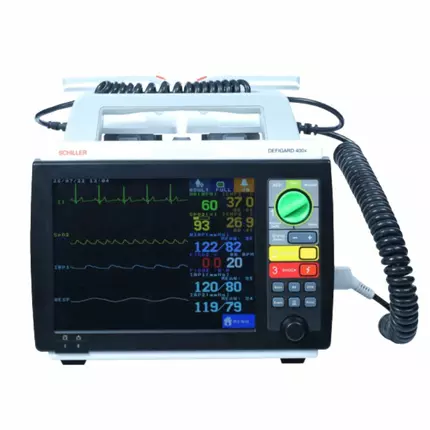

DEFIGARD 400x
