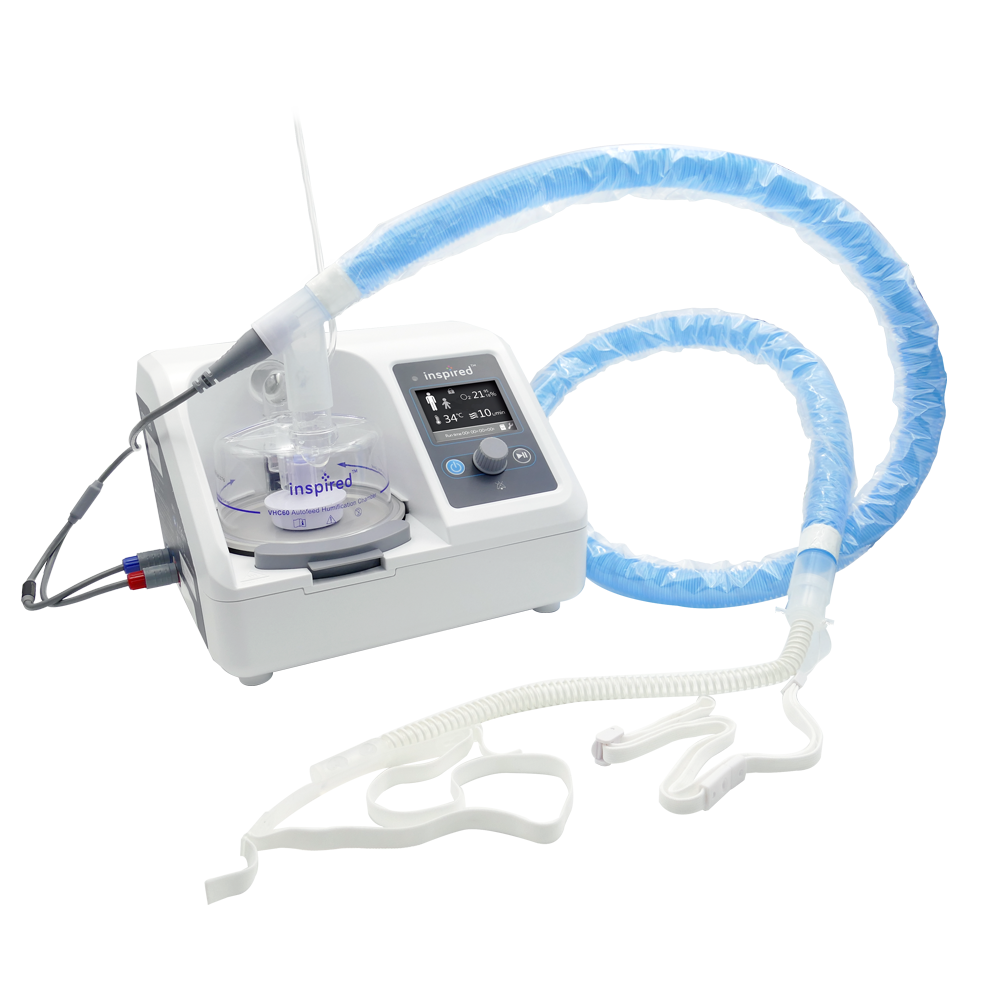

Inspired™ O2FLO
The Inspired™ O2FLO is a high-flow oxygen therapy system that delivers warm, humidified gases at 2–60 LPM with oxygen concentrations up to 95 %. It features real-time O₂ monitoring, rapidly warms gas to 37 °C, and includes a 2.8″ LCD display with smart alerts for water level or tube issues. Suitable for patients from infants to adults, it requires no disinfection between uses.
Key Features
- Premium Quality Equipment
- Free Installation Support
- Manufacturer Warranty
- 24/7 Technical Support
Product Description
1.High-Flow Oxygen Therapy
– Delivers warm, humidified oxygen at flow rates ranging from 2 to 60 LPM, providing effective respiratory support for a wide range of patients.
2.Oxygen Concentration
– Supplies oxygen concentrations up to 95 %, with real-time O₂ monitoring to ensure precise delivery.
3.Rapid Gas Warming
– Quickly warms inhaled gases to approximately 37 °C, improving patient comfort and maintaining normothermia.
4.Humidification Control
– Integrated humidification system ensures proper moisture delivery, preventing airway dryness and irritation during prolonged therapy.
5.User Interface
– Equipped with a 2.8″ LCD display for easy monitoring and adjustment of settings, including flow rate, temperature, and oxygen concentration.
6.Smart Alerts & Safety Features
– Alerts users to low water levels, tube-mode mismatches, and other potential issues, ensuring safe and continuous operation.
7.Hygiene & Maintenance
– Requires no disinfection between patients due to unidirectional oxygen flow, saving time for clinical staff and minimizing infection risk.
8.Patient Range
– Suitable for infants, children, and adults, making it versatile for use in hospital wards, ICUs, and emergency care settings.
9.Clinical Benefits
– Provides high-flow nasal oxygen therapy that can improve oxygenation, reduce work of breathing, and support patients with hypoxemic respiratory failure or other respiratory conditions.
Technical Specifications
| Device Dimensions | 243 mm × 220 mm × 170 mm |
| Dew Point Temperature Range (Adult) | 31–37 °C (± 2 °C) |
| Dew Point Temperature Range (Paediatric) | 31–34 °C (± 2 °C) |
| Flow Rate Range – Adult Mode | 10–60 L/min |
| Flow Rate Range – Paediatric Mode | 2–25 L/min |
| Humidification Output | ≥ 33 mg/L at 37 °C; ≥ 12–16 mg/L at 31–36 °C |
| Net Weight | ~ 2.8 ± 0.2 kg |
| Oxygen Concentration Range | 21% – 95% (real-time O₂ display) |
| Power Input | 100–240 V AC, 50/60 Hz, 300 VA |
| Sound Pressure Level (Noise) | ≤ 50 dB(A) |
| Standards / Compliance | IEC/EN 60601‑1, IEC/EN 60601‑1-2, ISO 80601‑2‑74 compliant |
| Warm-up Time | Approximately 6 minutes to reach 37 °C at 60 L/min |
